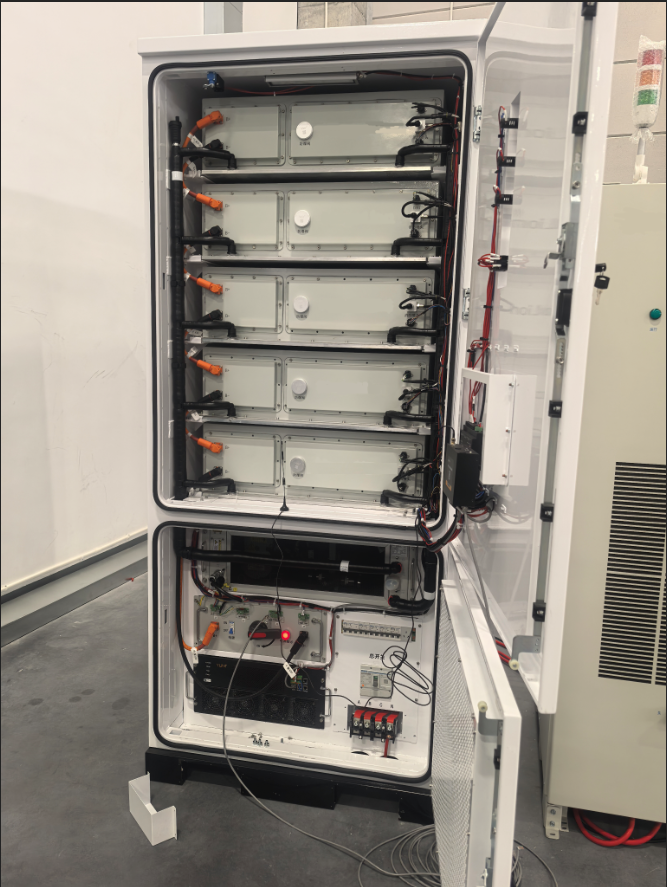

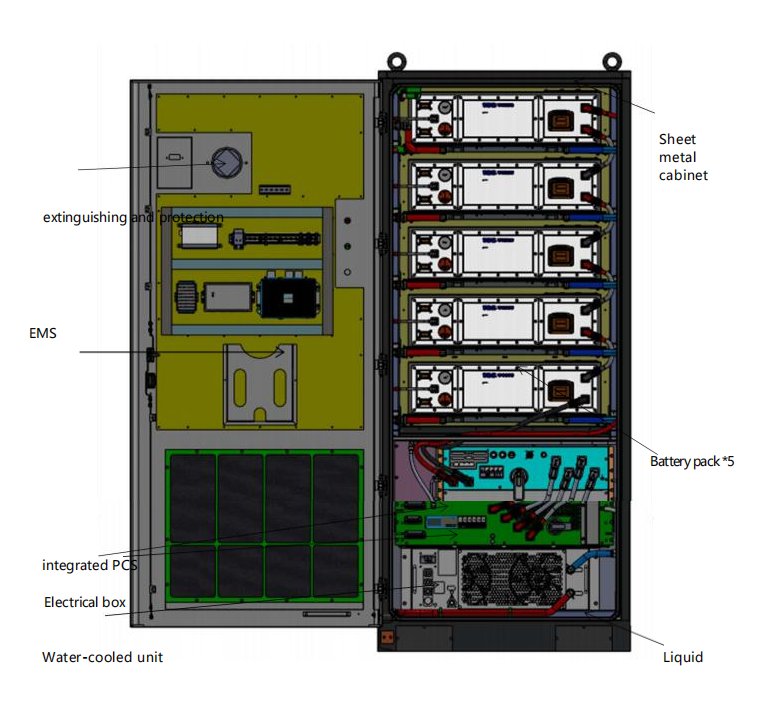

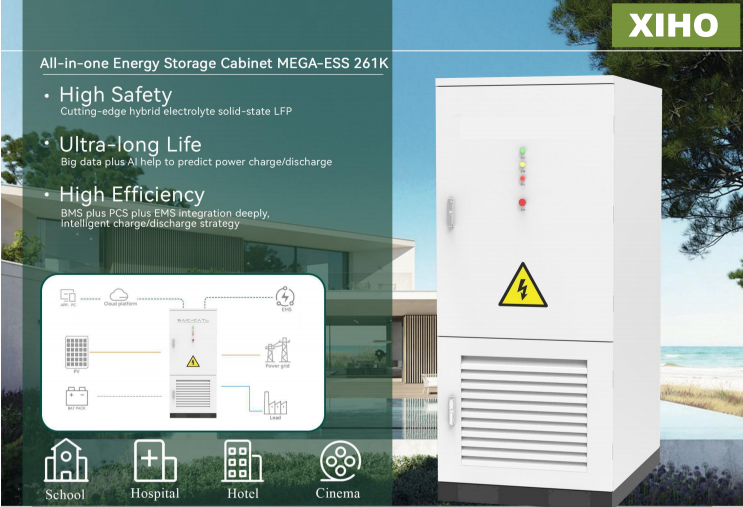

The energy storage cabinet consists of 5 battery modules, a PCS, a liquid cooling unit, an electrical box, and a fire protection system. The cell is the basic unit. BMS consists of a slave module and a master module. BMS collects information from the slave module and battery cluster and communicates with PCS and energy storage EMS.The battery system consists of 5 battery modules, an integrated PCS with a fusion high-voltage box, an electrical box, an EMS device, a water-cooled unit, fire protection, water-cooled pipes, etc.
Technical Specifications:
The battery system consists of 5 battery modules, an integrated PCS with a fusion high-voltage box, an electrical box, an EMS device, a water-cooled unit, fire protection, water-cooled pipes, etc.
The natural environment and self-temperature of the battery will directly affect the normal operation of the battery system, cycle life,chargeability, output power, available capacity, and safety reliability.Therefore, to achieve optimal battery performance and longevity, it is Liquid cooling necessary to control the temperature of the battery system within a specific range through thermal management, reducing internal temperature differences in the battery Uneven distribution. Finally improve the aging of the battery and eliminate potential risks. The battery cluster uses liquid cooling to meet the heat dissipation requirements of the battery system. The coolant is exchanged with the liquid cooling plate through the pipe to achieve the ideal working temperature of the battery.

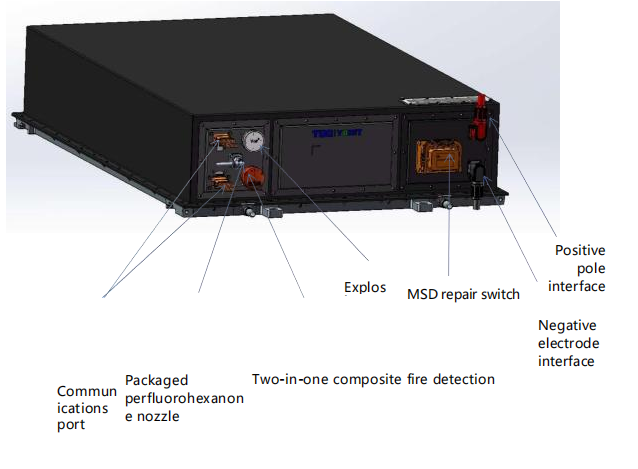

1. Productuse
This product requires BMU and BCU to achieve control and protection,PACK cannot work alone.
(1) The connection between PACKs should be made using a harness with a dedicated connector.
(2) To ensure that transportation and vibration will not cause PACK damage, it should be used with a cabinet with a dedicated slot.
(3) The charging and discharging temperature of PACK needs to be guaranteed. When applied in the environment without auxiliary heat dissipation, the charging and discharging rate should be reduced.
2. Product maintenance
(1) Check whether the screws of the output terminal block are loose;
(2) Measure whether the output voltage is within the normal range;
(3) Check whether the communication interface works normally through
the upper computer software;
(4) Check whether there are any abnormalities in the voltage, current,
power and temperature of individual cells in the battery pack through the
upper computer software.Battery systems are classified as energy storage devices and are considered hazardous materials. Unauthorized personnel or improper operation and use can lead to severe consequences such as electric shock,fire, and explosion. The installation and maintenance of battery systems must be carried out by professional technicians, and the use must strictly adhere to relevant safety regulations. Unauthorized individuals are prohibited from installing, repairing battery systems, and overusing them beyond their intended scope.
